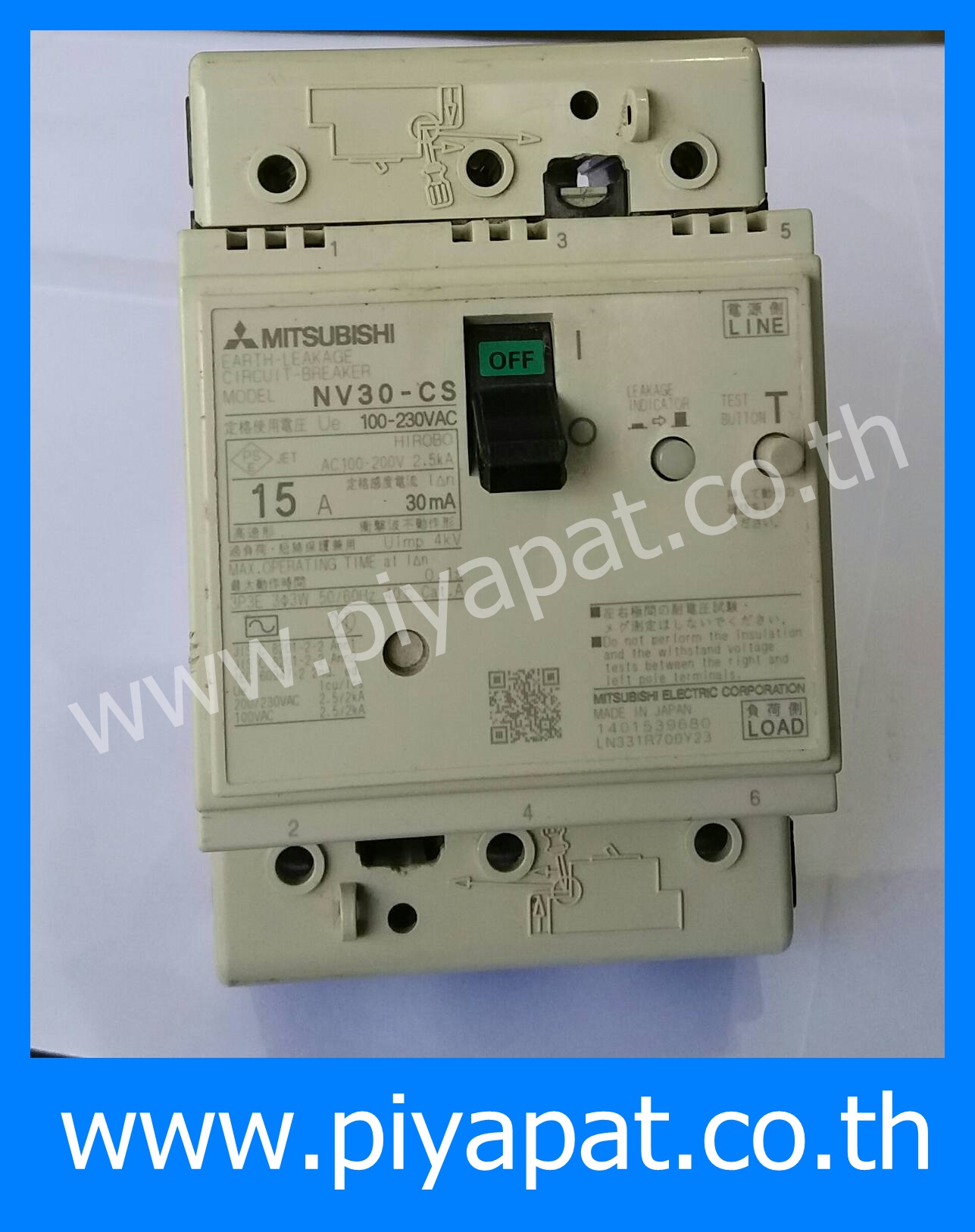

Breaker เบรกเกอร์ # NV30-CS 3P 15A 100-230VAC (มือสอง)
รายละเอียด
- Caution
- This product is manufactured in Japanese standards. Please check the specification before you order.
- Form Name
- NV30-CS
- External Dimensions c(mm)
- 52
- External Dimensions a (mm)
- 67.5
- Rated Sensitivity Current (mA)
- 30
- Standard Surrouunding Temperature (degree c)
- 40
- Weight (ｋg)
- 0.4
- Specification
- Harmonic surge supported
- Leakage Indication System
- Mechanical button
- Connection Method
- Surface type: For pressure terminals
- Type
- Earth leakage breaker NV-C series (economic goods)
- Phase Wire Type
- 3phi3W, 1phi3W, 1phi2W * WHEN USING A 3-POLE CIRCUIT BREAKER AS 1phi2W, PLEASE CONNECT TO RIGHT AND LEFT POLES WITHOUT THE CENTRAL POLE.IF 1 phi 3 W IS USED, PLEASE CONNECT IT TO THE MIDDLE CENTRAL POLE.
- Frame (AF)
- 30
- External Dimensions ca (mm)
- 67
- External Dimensions b (mm)
- 96
- Within Operating Time
- 0.1
- Rated Voltage AC V
- 100-230
- Number of Poles
- 3P
- Rated Current (A)
- 15
- Overcurrent Tripping Operation
- Fully electromagnetic
- Rated Breaking Capacity (kA)
- AC200V:2.5/AC100V:2.5(JIS C8371)
- Standard
- ELECTRIC EQUIPMENT MODEL AUTHORIZATION JIS CERTIFICATION SHOWING APPROVAL NUMBER
- Switching Lifetime (times)
- Mechanical: 10000 Electrical (AC200V): 6000
-
